High-voltage disconnectors RDZ-35/1000 U1

High-voltage disconnectors RDZ-35/1000 U1

High-voltage disconnectors RDz are designed for switching on, long-term transmission and disconnection of currents up to 1000A at a frequency of 50Hz in electrical networks with an isolated neutral and an operating voltage of up to 35kV in the absence of load current, as well as to ensure the necessary visible insulation gap between operations.

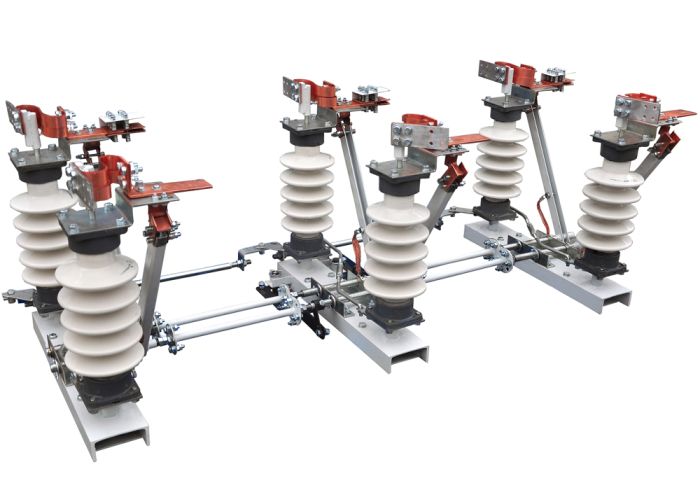

RDz are made of separate poles that can be used in single-pole, double-pole, three-pole installation options on a horizontal plane. The pole of the disconnector is made in the form of a two-column device with a turn of the main blades in a horizontal plane and a grounding device.

Type of climatic design U1 according to GOST 15150.

Normal operation of RDz is ensured under the following conditions:

1. Altitude above sea level - no more than 1000 m;

2. The environment is non-explosive, not containing conductive dust, aggressive gases and vapors in concentrations that reduce the parameters of the KTP to unacceptable standards;

3. Atmosphere type - II according to GOST 15150.

The switch and grounding knives are controlled by the PR-1 U1 drive.

Example of an order entry for a high-voltage disconnector with a network voltage of 35 kV, a rated current of up to 1000A with two U1 climatic earthing switches

Disconnector RDz2 35-1000 U1 TU U 3.2-14152239-012:2010

When ordering, it is necessary to indicate the customer's payment and shipping details.
